CopterFrames Nex-5 Camera Gimbal Assembly Guide

First of all,please check the box contents.



        -2x upper plate (GFK)

        -2x lower plate (GFK)

        -2x servo tray holder (GFK)

        -servo tray (GFK)

        -lower side joiner (GFK)

        -4x30m hex spacer

        -5x20mm hex spacer

        -2x6mm hex spacer

        -3x14mm spacer

        -18xM3 screw

        -3x35mm M3 screw

        -6x25mm M3 screw

        -6x15mm M3 screw

        -2x10mm M3 screw

        -7x M3 fiber nut

        -11xM3 nut

        -7x bearing

        -12xM3 fiber washer

        -2xM3 washer

        -Gearing set (5 pieces, will use 4 of them.)

        -350mm 3m belt

        -4x dampner

        -2x cable tie

 Product link:
http://www.copterframes.com/index.php?route=product/product&path=70&product_id=76

                                                        This photo shows included GFK pieces.

Allways remember that,you must use a threadlocker.

This picture shows us structure of the gear set.

Preparing servos:

Building Upper side:

You can assemble all of the structure before mounting the lower side.Make sure all threads locked with threadlocker.

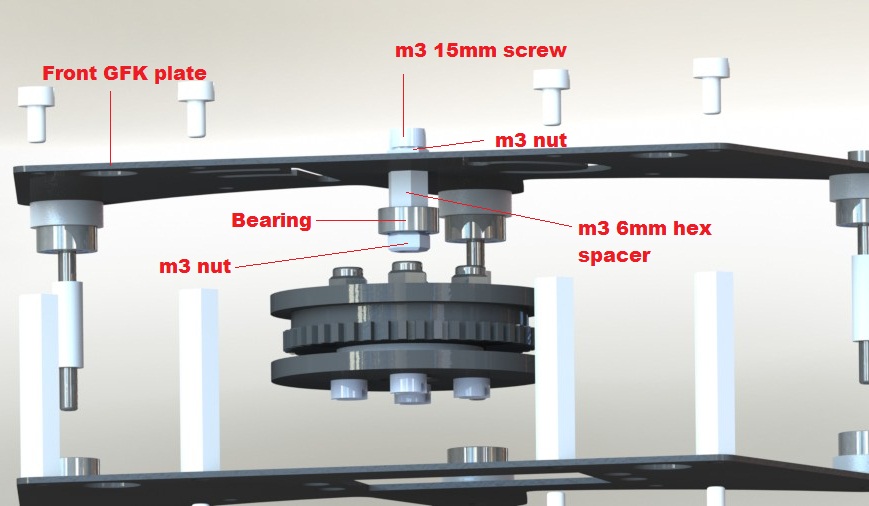

Assemble of the servo balancer:

This part is not important thing.But it is a safety part of the belt driving.Make sure all threads locked with threadlocker.

Assemble of the lower side:

note: if you locate upside down servo and camera tray holder,this mount fits eos550 (t2i) size cameras.

Mounting tilt servo:

Structure of the tray:

Tray holder mounting:

Assembly of the roll belt:

Cut the zip ties when it is done.

Assembled gimbal:

And the finally when I prepare this guide :)

This guide prepared with  10 cup of coffe :D

Feel free to asking questions.
